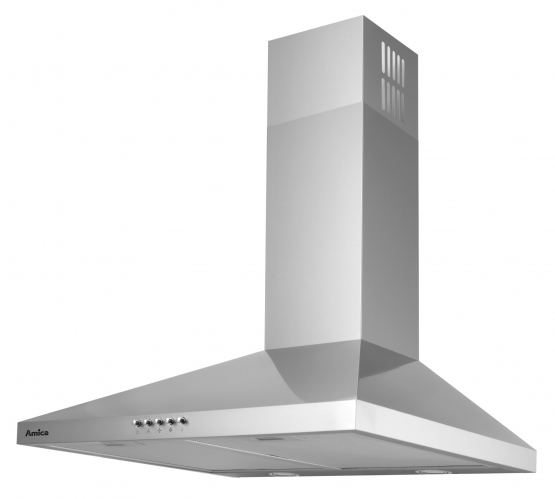

OKP6221Z
OKP6221Z
Specification
FEATURES
| Accessories Pipe | Air flaps Yes | Montage template Yes |
| Panel - language version Pictograms | Protection class of electric shock I_Class | Low noise level No |
| Type of work Extraction/Recirculation |
Equipment
| Number of carbon filters 2 | Number of grease filters 2 | Number of layers in grease filter 5 |
| Number of speed 3 | Type of control Push buttons | Type of grease filters Aluminium frame |
| Carbon filter type KF 17154 |
Technical data
| Frequency 50 | Air flow at 1 speed - extractor by EN 61591 228 m3/h | Air flow at 2 speed - extractor by EN 61591 307 m3/h | ||||||||||||||||||||||||||||||
| Air flow at 3 speed - extractor by EN 61591 388 m3/h | Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 388 m3/h | Air Flow at Minimum Speed in Normal Use 228 m3/h | ||||||||||||||||||||||||||||||
| Air Flow Rate at Best Efficiency Point - Q BEP 224.5 m3/h | Air Pressure at Best Efficiency Point P BEP 189.7 Pa | Annual energy consumption 52 kWh | ||||||||||||||||||||||||||||||
| Average Illumination of the Lighting System on the Cooking Surface - E middle 378 lux | Container qty 40'HQ 810 | Control panel on one side/two sides One side | ||||||||||||||||||||||||||||||
| Dimensions of grease filter 384.8 x 278 mm | Display color No | Distance from light cover to wall 1.5 cm | ||||||||||||||||||||||||||||||
| Distance to electric hob 45 cm | Distance to gas hob 65 cm | Electric Power Input at Best Efficiency Point - W BEP 84.3 W | ||||||||||||||||||||||||||||||
| Energy Efficiency Index - EEI hood 78.7 | Fluid Dynamic Efficiency - FDE hood 14 | Fluid Dynamic Efficiency Class D | ||||||||||||||||||||||||||||||
| Grease Filtering Efficiency - GFE hood 70 % | Grease Filtering Efficiency Class C | Gross volume 0.0876 m³ | Internal/external motor Internal | Main lighting colour temperature [K] 3000 | Lighting Efficiency - LE hood 47.3 lux/W | Lighting Efficiency Class A | Lighting Efficiency Class A | Maximum Possible Air Flow 388 m3/h | Motor unit rated power 120 W | Motor type/model F series | Net depth 49 cm | Net height max 98 cm | Net height min 60 cm | Net weight 7 kg | Net width 60 cm | Noise level at 1 speed - extractor by EN 60704-2-13 58 dB | Noise level at 2 speed - extractor by EN 60704-2-13 63 dB | Noise level at 3 speed - extractor by EN 60704-2-13 65 dB | Nominal Power of the Lighting System - W L 8 W | Number of motor units 1 | Number units of main lighting 2 | Air exhaust diameter 12 cm | Type of plug or cable Euro plug | Power cabel length 120 cm | Power rating 128 W | Power Supply Voltage 230V | Power unit of main lighting 4 W | Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 65 dB | Sound Power Emission at Minimum Speed Available in Normal Use 58 dB | Noise level 65 dB | Time Increase Factor - f 1.5 | Type of main lighting LED GU10 |
