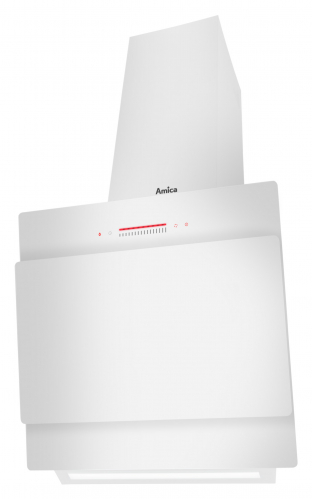

OKP6651SW
OKP6651SW
Specification
FEATURES
| Accessories Pipe | Air flaps Yes | BLDC motor Yes |
| Delay Yes | FrameOn Yes | High efficiency Yes |
| Maximum time of delay 15 ' | Montage template Yes | Panel - language version Pictograms |
| Protection class of electric shock I_Class | Low noise level Yes | Type of work Extraction/Recirculation |
Equipment
| Number of carbon filters 2 | Number of grease filters 1 | Number of layers in grease filter 5 |
| Number of speed 10 | PowerBooster Yes | Type of control Sensor slider |
| Type of grease filters Aluminium frame | Carbon filter type FWP 18 |
Technical data
| Frequency 50 | Air flow at 10 speed - extractor by EN 61591 565 m3/h | Air flow at 1 speed - extractor by EN 61591 252 m3/h | ||||||||||||||||||||||||||||||||
| Air flow at 5 speed - extractor by EN 61591 379 m3/h | Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 565 m3/h | Air Flow at Minimum Speed in Normal Use 252 m3/h | ||||||||||||||||||||||||||||||||
| Air Flow Rate at Best Efficiency Point - Q BEP 314.4 m3/h | Air Pressure at Best Efficiency Point P BEP 271 Pa | Annual energy consumption 23.6 kWh | ||||||||||||||||||||||||||||||||
| Average Illumination of the Lighting System on the Cooking Surface - E middle 181.6 lux | Container qty 40'HQ 406 | Control panel on one side/two sides One side | ||||||||||||||||||||||||||||||||
| Dimensions of grease filter 226 x 247 | Display color Red | Distance from light cover to wall 1.9 cm | ||||||||||||||||||||||||||||||||
| Distance to electric hob 45 cm | Distance to gas hob 65 cm | Electric Power Input at Best Efficiency Point - W BEP 70.8 W | ||||||||||||||||||||||||||||||||
| Energy Efficiency Index - EEI hood 41.8 | Fluid Dynamic Efficiency - FDE hood 33.4 | Fluid Dynamic Efficiency Class A | ||||||||||||||||||||||||||||||||
| Grease Filtering Efficiency - GFE hood 56 % | Grease Filtering Efficiency Class E | Gross volume 0.1686 m³ | Internal/external motor Internal | Main lighting colour temperature [K] 6500 | Lighting Efficiency - LE hood 45.4 lux/W | Lighting Efficiency Class A | Lighting Efficiency Class A | Maximum Possible Air Flow 565 m3/h | Motor unit rated power 90 W | Motor type/model G series | Net depth 39.4 cm | Net height max 134 cm | Net height min 96 cm | Net weight 19 kg | Net width 60 cm | Noise level at 10 speed - extractor by EN 60704-2-13 66 dB | Noise level at 1 speed - extractor by EN 60704-2-13 45 dB | Noise level at 5 speed - extractor by EN 60704-2-13 53 dB | Nominal Power of the Lighting System - W L 4 W | Number of motor units 1 | Number units of main lighting 1 | Air exhaust diameter 15 cm | Type of plug or cable Euro plug | Power Consumption in Standby Mode - Ps 0.45 W | Power Consumption in Off Mode - Po 0.33 W | Power cabel length 115 cm | Power rating 94 W | Power Supply Voltage 230V | Power unit of main lighting 4 W | Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 66 dB | Sound Power Emission at Minimum Speed Available in Normal Use 45 dB | Noise level 66 dB | Time Increase Factor - f 0.7 | Type of main lighting LED strip |
